IBC Tonne Bucket Frame Production Line with Bending Machine Operating Manual / Automation Operation Guide

Μεγάλες Εικόνας : IBC Tonne Bucket Frame Production Line with Bending Machine Operating Manual / Automation Operation Guide

Λεπτομέρειες:

Τόπος καταγωγής:	Κίνα
Μάρκα:	Trintfar
Πιστοποίηση:	CE

Πληρωμής & Αποστολής Όροι:

Ποσότητα παραγγελίας min:	1
Τιμή:	10000~80000
Συσκευασία λεπτομέρειες:	Ξύλινες αγκύλες/ξύλινες θήκες
Χρόνος παράδοσης:	60 ~ 90
Όροι πληρωμής:	L/C, D/A, D/P, T/T

Επικοινωνία

IBC Tonne Bucket Frame Production Line with Bending Machine Operating Manual / Automation Operation Guide

περιγραφή

Διαμόρφωση χωρητικότητας:	150-200pcs/8h	Φορείς εκμετάλλευσης:	Μη αυτόματη γραμμή (7-8 άτομα) Αυτόματη γραμμή (5-6 άτομα)
Διανομή ισχύος εξοπλισμού:	550kW	Απαίτηση αέρα:	1.1m³/min
Απαίτηση νερού:	10-25m³/h

Workflow

Work flow:

Frame Processing: Frame Welding → Frame Bending → Pipe → Inserting and Locking → Frame Punching And Hole Making

Base Processing: Base Pipe Bending Machine → Base Welding

Main equipments

Frame Processing Machine

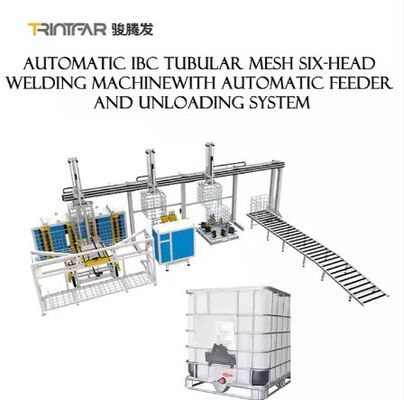

Frame Welding Machine

Welding Efficiency: 45sec/pc

Reinforced Gantry Structure for high rigidity and stable operation.

Medium-Frequency Inverter Power Supply for energy-efficient welding.

6 Welding Heads & Power Systems, each with independent current adjustment for reliable weld spots.

Double-Layer Feeder Design for continuous operation: while one feeder welds, the other loads materials.

Automatic Stepping Welding with servo-driven stepping belt for precise positioning.

Automatic Demolding: Cylinder ejects after welding to prepare for unloading.

Automatic Unloading: Servo-controlled grabber moves welded product to designated position, reducing labor and improving efficiency. 90° Rotating Unloading Feeder for easy transportation.

Frame Bending Machine

Whole-frame Processing for high bending precision, stable operation, and efficiency. Bends a frame every 15-20s.

Special Bending Balance System ensures frame diagonal accuracy.

HMI + PLC Control for high automation.

Manipulator Option for automatic loading/unloading, reducing personnel.

Quick Mold Change for bending different pipes.

Servo Hydraulic System with fast response, low inertia, and high precision.

Modular Design allows customization for automation based on customer needs.

Frame Locking Machine

Efficiency and Quality: The locking process takes approximately 25-30 seconds to complete.

Machine Frame processed as a whole for high insertion precision, strong locking, stable, and efficient operation.

HMI + PLC Control for high automation.

Manipulator Option for automatic loading/unloading, reducing personnel.

Quick Mold Change to meet different locking pipe requirements with easy mold replacement.

Servo Hydraulic System with fast response, low inertia, and high precision.

Modular Design allows customization of automation based on customer needs.

Punching and Hole Making Machine

Efficiency and Quality: The locking process takes approximately 25-30 seconds to complete.

Machine Frame: Whole-body processing for high precision, stable, and efficient operation.

Control System: HMI + PLC for high automation.

Manipulator: Option for automatic loading/unloading, reducing personnel.

Quick Mold Change: Easily replace molds to meet different pipe punching needs.

Servo Hydraulic System: Fast response, low inertia, and high precision.

Modular Design: Customizable automation based on customer needs.

Base Processing Machine

Base Pipe Bending Machine

Base Pipe Welding Machine

Design: Horizontal structure with 7 welding heads for base frame welding. Operator only needs to load/unload; welding is automatic.

Power: 3 sets of MF DC 160KVA.

Benefits: Improves product quality and production rate, reduces costs, and eliminates instability caused by manual welding. Higher automation and production efficiency.

Other informations

Product Details

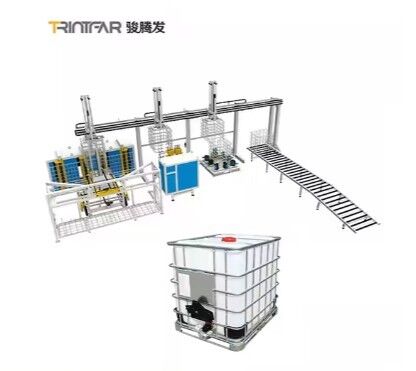

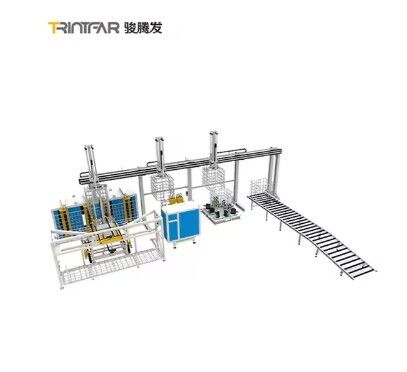

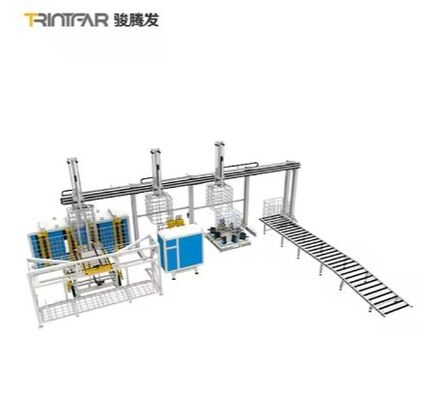

IBC Cage Frame production line Layout Diagram

IBC Tonne Bucket Frame Production Line with Bending Machine Operating Manual / Automation Operation Guide 10

Production Results

Equipment Configuration List

NO	Equipment name	Unit	Quantity	Main functions
1	Mesh gantry welding machine	Unit	1	Mesh multi-point welding
2	Mesh automatic feeding machine	Set	1	Automatic loading of long and short tubes
3	Mesh material taking manipulator	Unit	1	Mesh unloading (stacking)
4	Four-axis bending machine	Set	1	Bending and forming of mesh with shrinkage head
5	Locking machine	Set	1	Bending and interlocking of mesh
6	Flattening punching machine	Set	1	Punching and cutting of bottom tube under the frame
7	Frame manipulator	Set	1	Three manipulators moving up and down to grab the frame
8	Steel foot welding machine	Set	1	Welding of steel feet of bottom frame
9	Steel foot welding machine material taking manipulator	Set	1	Taking out, transferring and stacking of bottom frame after welding
10	Automatic airtight machine	Set	1	Testing the tightness of liner
11	Automatic double bending machine for bottom pipe	Set	1	Shrinkage, embossing and bending of bottom tube
12	Vibration test platform	Set	1	Testing the firmness and protection of IBC barrels
